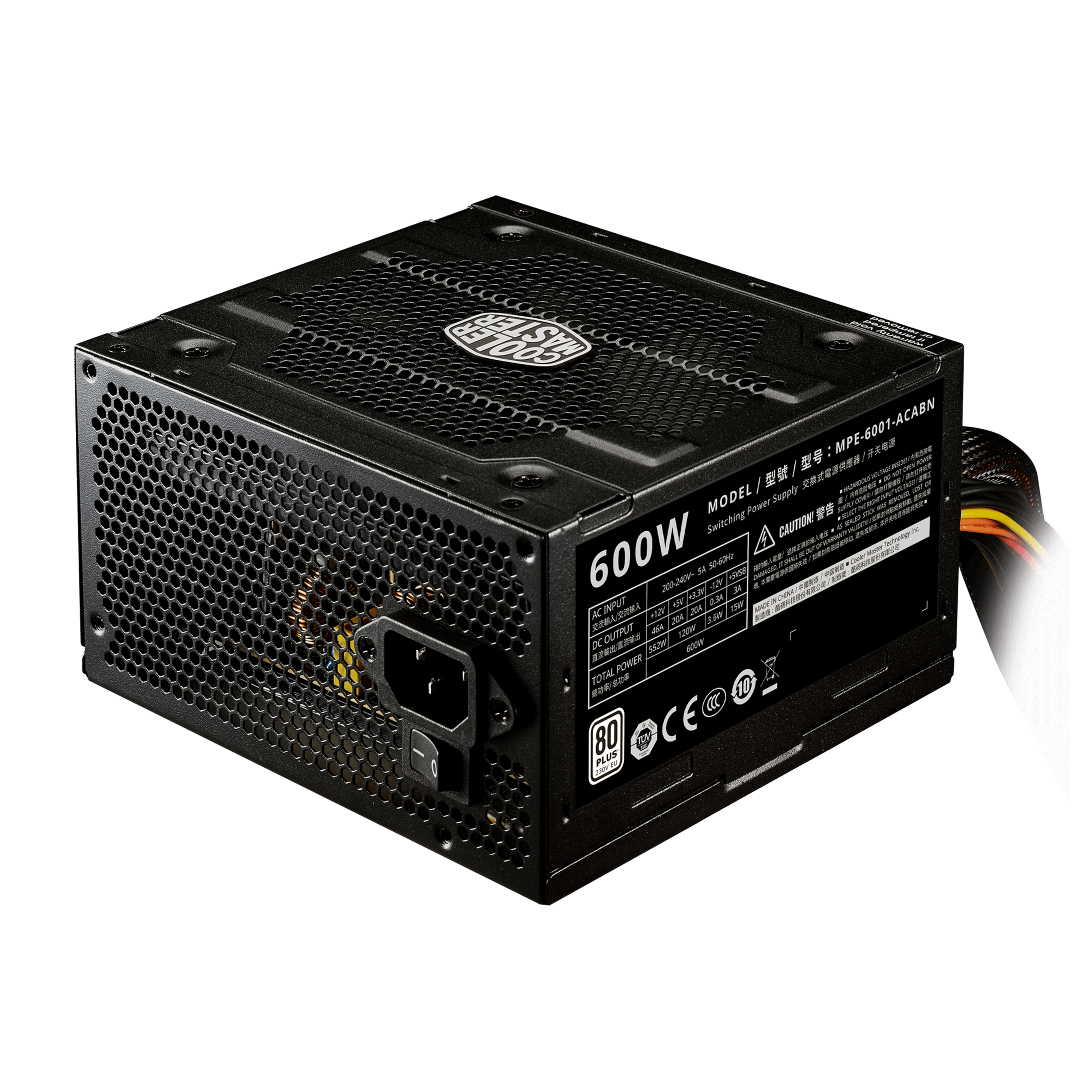

Model MPE-6001-ACABN
ATX Version ATX 12V Ver. 2.41
PFC Active PFC
Input Voltage 200-240Vac
Input Current 5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing Sleeve Bearing
Efficiency 85% @ Typical Load
80 PLUS Rating 80 PLUS Standard 230V EU
ErP 2014 Lot 3 Yes
Operating Temperature 40°C
Power Good Signal 100 – 500 ms
Hold Up Time >14ms at 100% load
MTBF >100,000 Hours
Protections OVP, OPP, OTP, SCP, UVP
Regulatory TUV, cTUVus, CE, BSMI, FCC, EAC, RCM, KCC, CCC, CB
MB 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
SATA Connectors 5
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 2
Series Elite Series
80 Plus Standard
Modular Non Modular
Wattage 500 to 750W
